ARCHCELL® IR

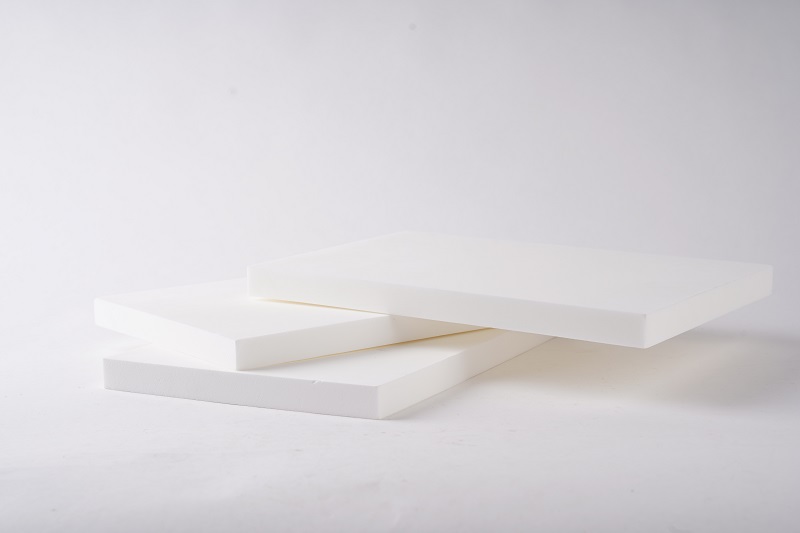

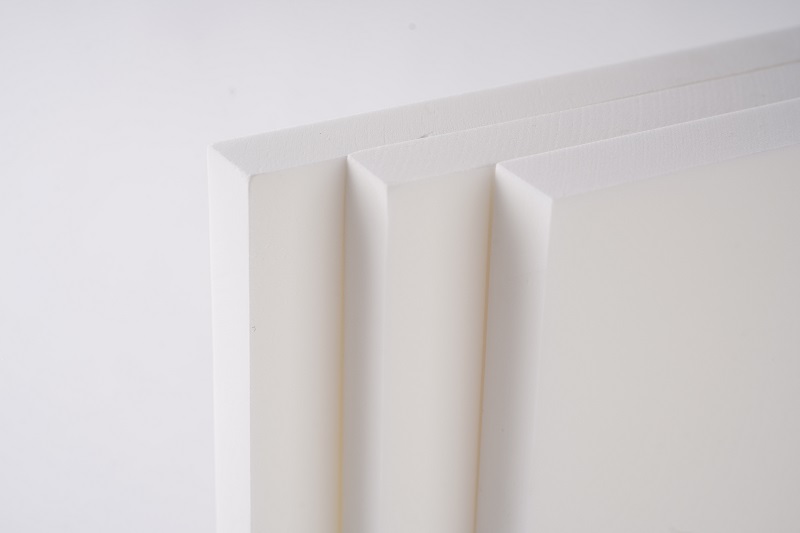

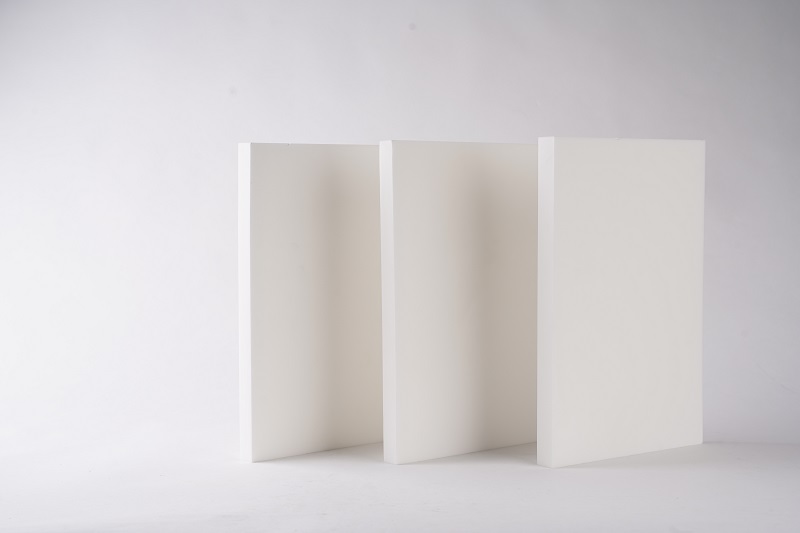

Demo Image

Product introduction

ARCHCELL® IR

ARCHCELL® is a closed-cell rigid PMI (Polymethacrylimide) foam, which used as the core of lightweight sandwich structure.

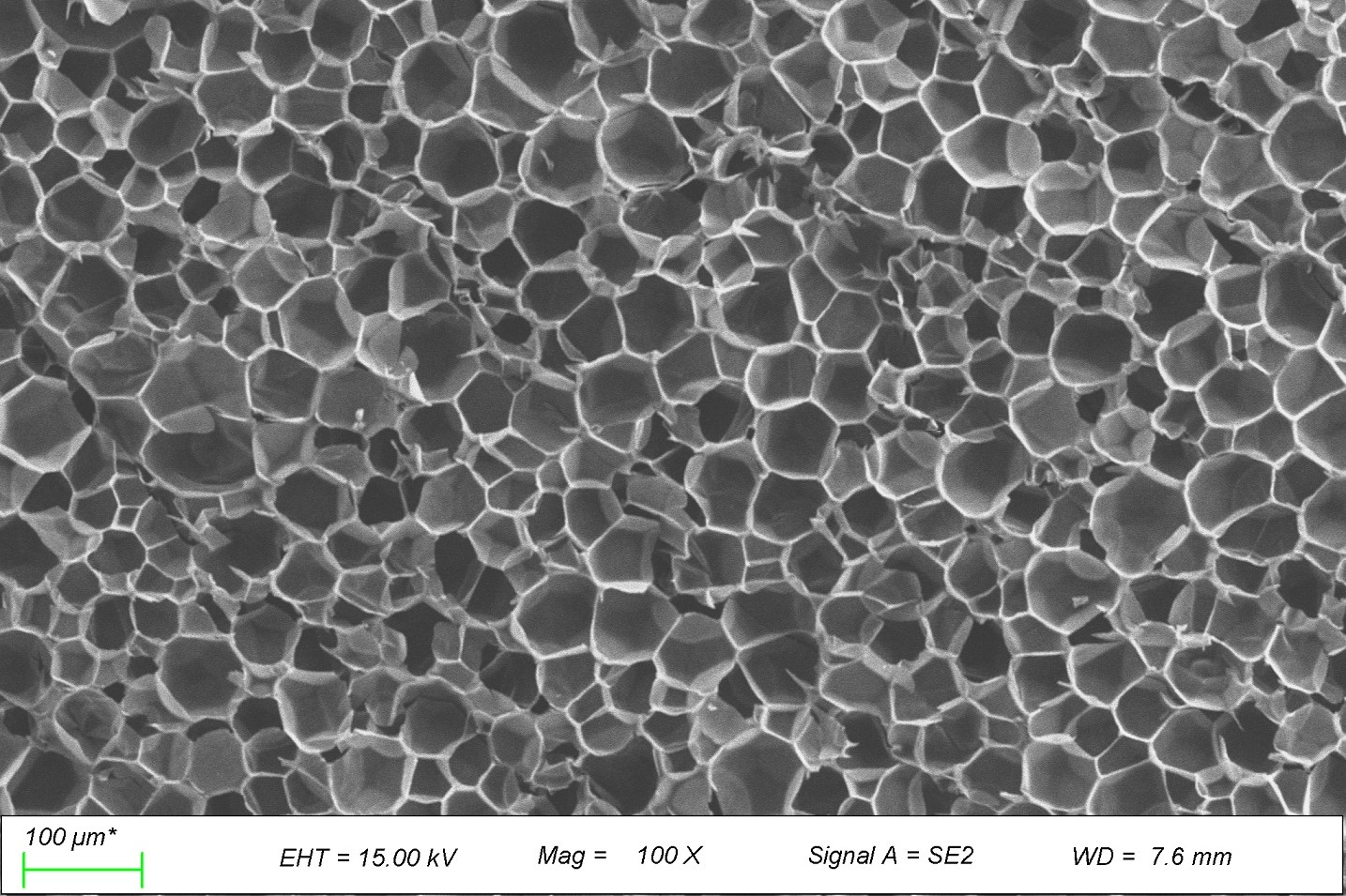

IR (Impact resistance) is a grade with impact resistance requirement. The foam has improved elongation at break and is suitable for parts, such as aircraft wings, radomes, landing gear doors, etc. susceptible to impact damage. While ensuring good impact resistance, this grade can also be compatible the process conditions of 180°C and 0.7 MPa. And it is suitable for various curing processes (autoclave, vacuum infusion, RTM, VARTM, VARI, HP-RTM, etc.). Also, it has good processability and can be easily thermoformed or CNC machined. The fine cell design of this grade and the closed cell structure of the foam ensure a good balance between peel strength and product weight of the sandwich parts.

TYPICAL PROPERTY VALUES

Properties

Unit

51 IR

71 IR

110 IR

200 IR

Standard

Density

kg/m3

52

75

110

205

ISO 845

lbs/ft3

3.25

4.68

6.87

13.73

ASTM D1622

Compressive Strength

MPa

0.68

1.26

2.91

7.14

ISO 844

psi

98.63

182.75

422.06

1035.57

ASTM D1621

Tensile Strength

MPa

1.93

3.59

5.68

12.32

ISO 527-2

psi

279.92

520.69

823.81

1786.86

ASTM D638

Shear Strength

MPa

0.79

1.27

2.28

5.45

DIN 53294

psi

114.58

184.20

330.69

790.46

ASTM C273

Elastic Modulus

MPa

70.9

114.7

196.9

388.7

ISO 527-2

psi

10283.17

16635.82

28557.92

56376.15

ASTM D638

Shear Modulus

MPa

22.7

29.4

51.7

110.2

DIN 53294

psi

3292.36

4264.11

7498.45

15983.15

ASTM C273

Elongation at Break

%

8.1

8.0

8.4

8.8

ISO 527-2

ASTM D638

HDT

℃

205.6

205.6

202.1

203.1

DIN 53424

°F

462.08

462.08

395.78

397.58

The above technical data are typical values at nominal densities

Sales Range

Grade

Size（mm）

Standard Sheet Thickness （mm）

Possible Sheet Thickness（mm）

51 IR

2500*1250

90

1-155

71 IR

2500*1250

80

1-140

110 IR

2100*1050

70

1-115

200 IR

1900*900

60

1-90

Thickness tolerance±（0.2mm）
